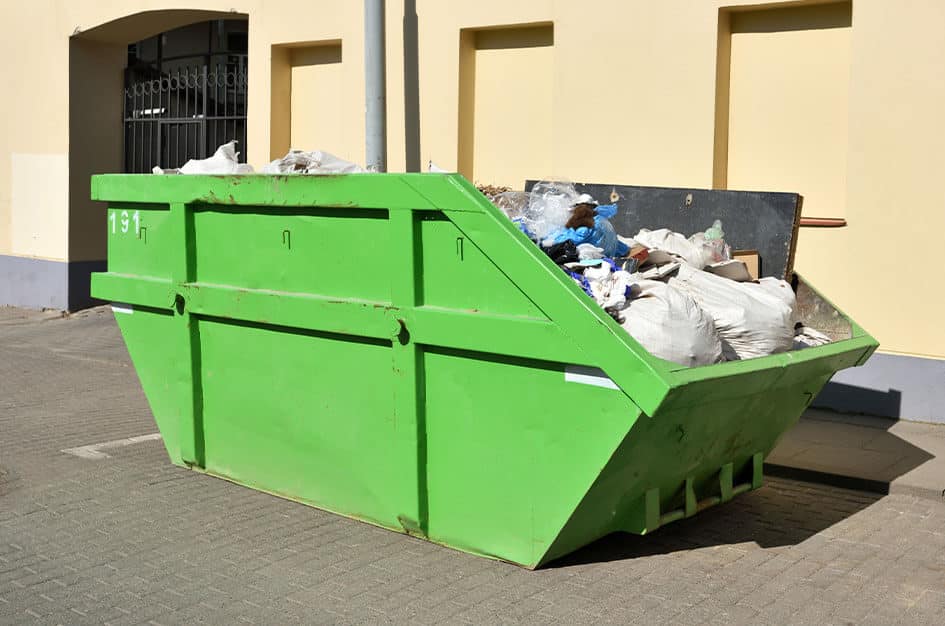

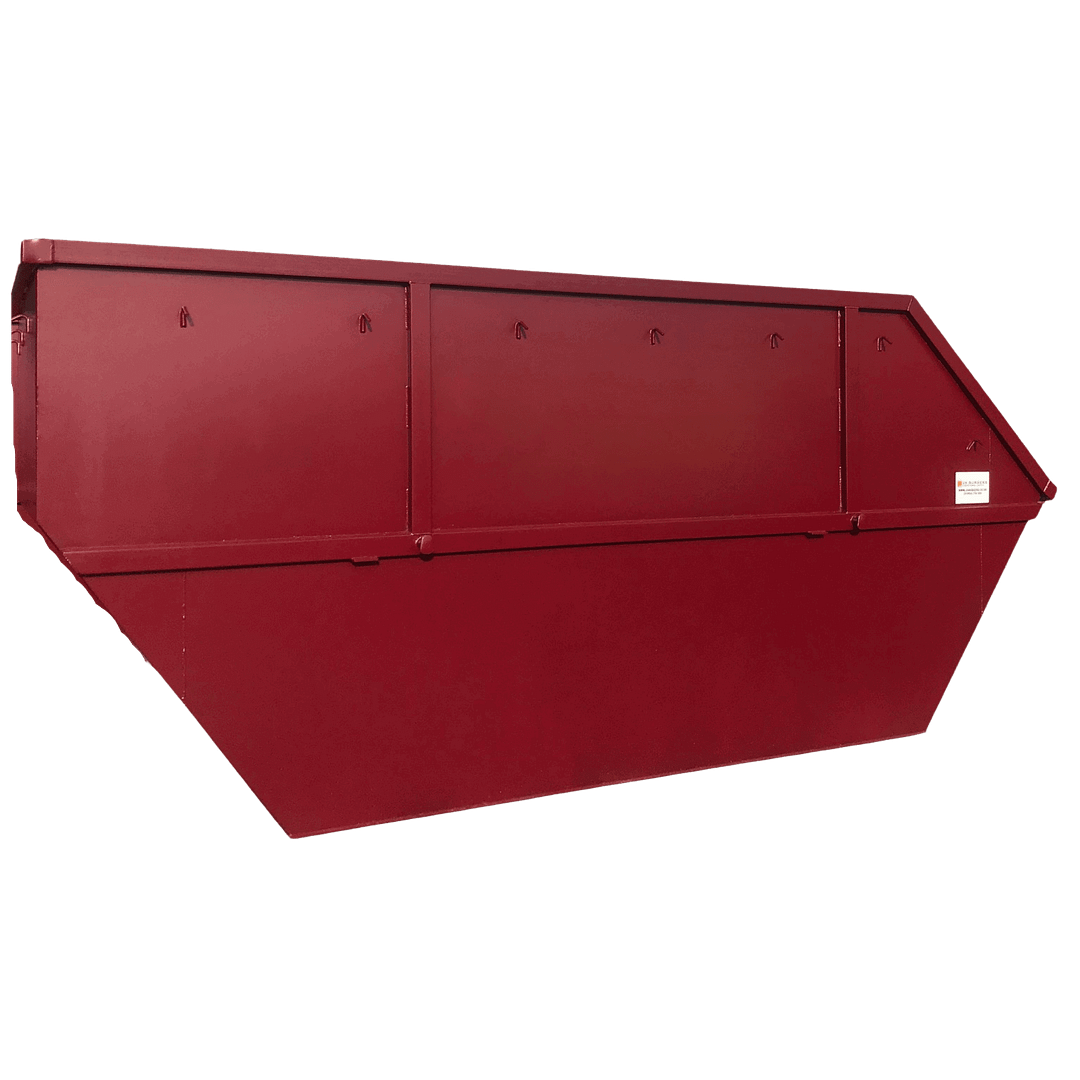

Block-End Skips
The Block-End Skip is useful for operations where customers require maximum load levels, as waste can be pushed up towards the back panel without worrying about overspill.
JS Burgess Block-End Skip come with drop forged Meiller lifting lugs fully-welded through the channel and a 6mm backing plate. It comes with internal gussets welded in each corner for rigidity, as well as wrap around plates fitted on the external corners for additional strength and 32mm diameter tipping bars supported by 6mm plates fitted on both ends.
TALK TO US ABOUT YOUR REQUIREMENTS!
Optional Extras
- Drain Holes
- External Fork Pockets
- Floor Angles
- Heavy Duty Tipping Bar
- Internal Fork Pockets
- LOLER Certified Lifting Eyes
- Mark Boards Edge Protective
- Marker Boards
- Named Profile Plates
- Rope Hooks
- Sign Boards

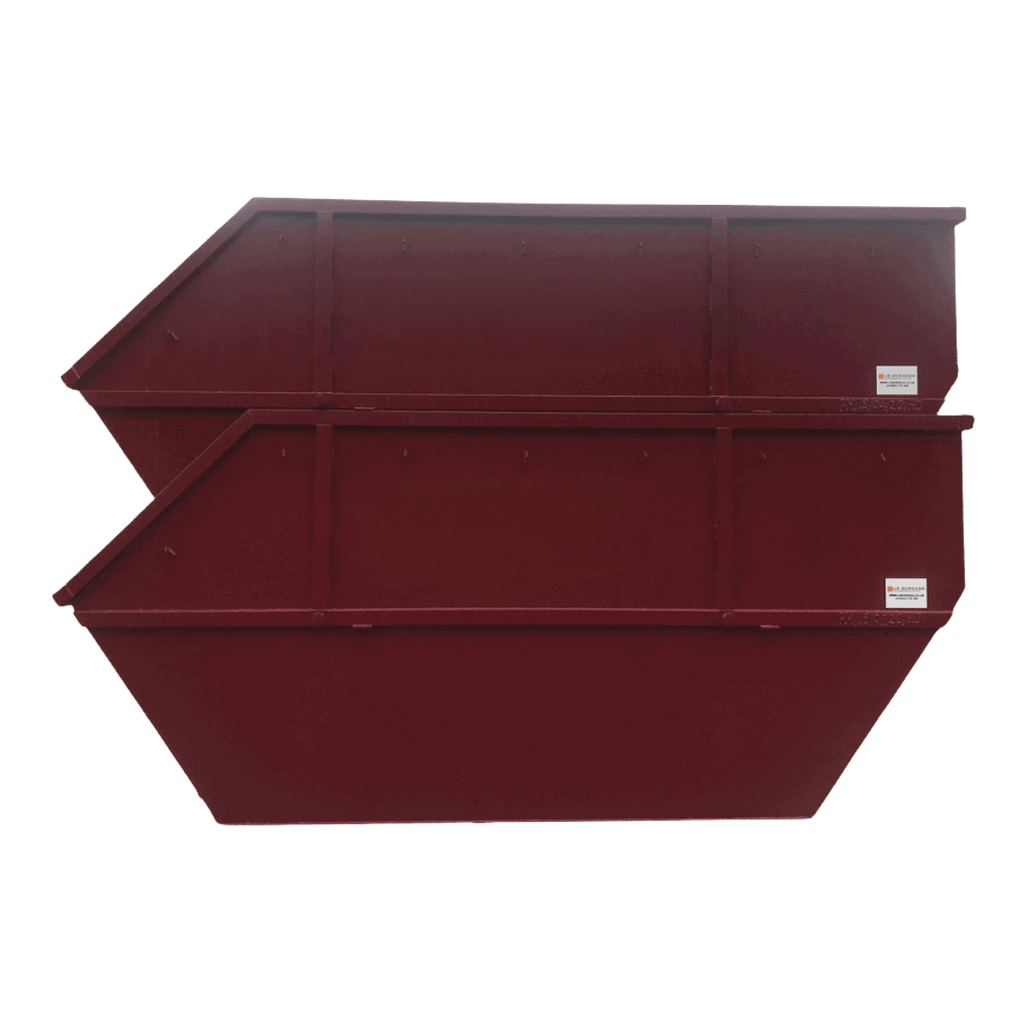

- Stacking Blocks
- Stenciling / Vinyl Logos
- Two or More Colour Painting
- Named Profile Plates
- Yellow Ends
Available Sizes
| Size (Yd) | Weight (Kg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| 8 | 556 | 3424 | 1676 | 1250 |
| 10 | 641 | 3733 | 1676 | 1500 |
| 12 | 781 | 3743 | 1676 | 1830 |
| 14 | 856 | 3975 | 1676 | 2000 |
| 16 | 1048 | 4470 | 1676 | 2000 |
