Front & Rear-End Load Skips
FRONT-END LOAD SKIPS

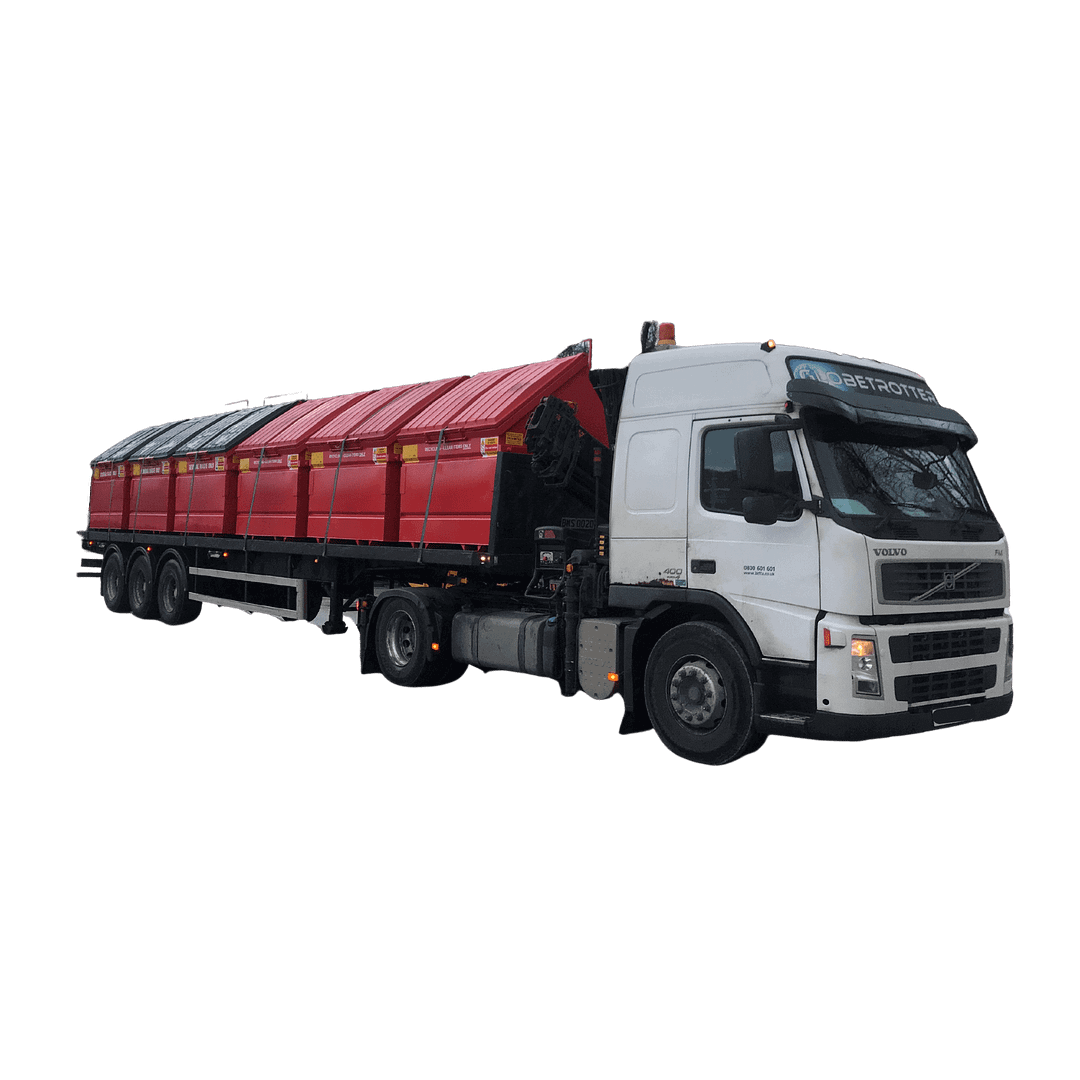

The Front End Load (FEL) Skips, or Top/Side Hung Containers, are designed for use with front end loading vehicles.
The FEL Skip is fitted with two double skinned plastic lids as standard available in both side and top hinged variants. The side hinged lids are designed to prevent wind scatter and load sticking when opened from a chute.
All FELs are fitted as standard with Skip lifting lugs and underfloor pockets and all sizes come available with the option of a Skip Tipping Bar or Goal Post for use on Skip Loader Vehicles.
The smaller 2 and 4YD FELs are available with the option of heavy-duty castors for maneuverability. Castors are supplied as two fixed and two swivels with brakes.
Optional Extras
- Drain Holes
- External Fork Pockets
- Floor Angles
- Heavy Duty Tipping Bar
- Internal Fork Pockets
- LOLER Certified Lifting Eyes
- Mark Boards Edge Protective
- Marker Boards
- Named Profile Plates
- Rope Hooks
- Sign Boards
- Stacking Blocks
- Stenciling / Vinyl Logos
- Two or More Colour Painting
- Named Profile Plates
- Yellow Ends
Available Sizes
| Size (Yd) | Weight | Length | Width | Height |
|---|---|---|---|---|
| 2 | 242 | 1800 | 854 | 1124 |
| 4 | 437 | 2026 | 1473 | 1625 |
| 6 | 531 | 1820 | 1748 | 1943 |
| 8 | 635 | 1820 | 2170 | 2000 |
| 10 | 740 | 2026 | 2670 | 2136 |



TALK TO US ABOUT YOUR REQUIREMENTS!
REAR-END LOAD SKIPS

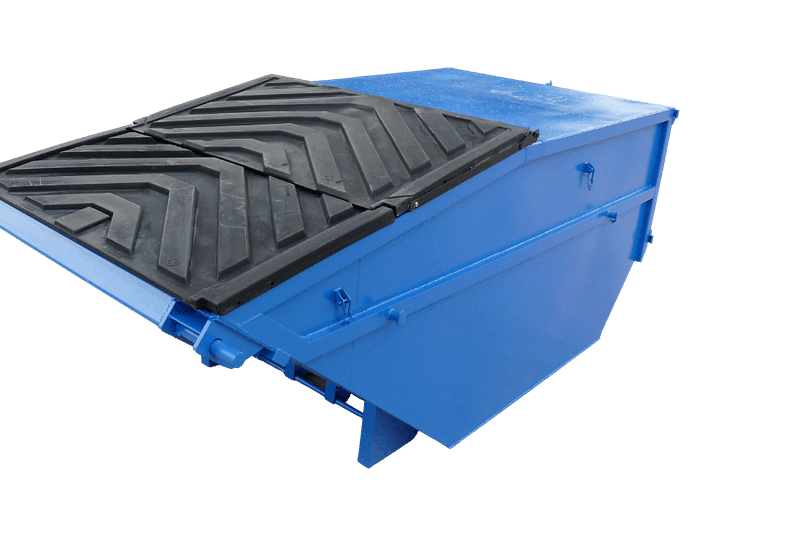

Rear End Load (REL) Skips are designed for use with rear end loading vehicles.
As standard, the REL has double skinned plastic lids fitted to the front end and comes with lid opening handles. Lids are double hinged and fold back onto the roof of the Skip when emptying. The REL is fitted with front stabilisers to prevent front end tipping forward if incorrectly loaded. REL Skips are also equipped with underfloor runners to prevent corrosion of floor plate.
In addition to plastic lids, RELs can also be open or fully enclosed with a choice of steel lids or a PVC sheet cover.
Optional Extras
- Drain Holes
- External Fork Pockets
- Floor Angles
- Heavy Duty Tipping Bar
- Internal Fork Pockets
- LOLER Certified Lifting Eyes
- Mark Boards Edge Protective
- Marker Boards
- Named Profile Plates
- Rope Hooks
- Sign Boards
- Stacking Blocks
- Stenciling / Vinyl Logos
- Two or More Colour Painting
- Named Profile Plates
- Yellow Ends
Available Sizes
| Size (Yd) | Weight | Length | Width | Height |
|---|---|---|---|---|
| 4 | 358 | 2599 | 1774 | 1000 |
| 6 | 477 | 3386 | 1872 | 1000 |
| 8 | 547 | 3728 | 1860 | 1250 |
| 10 | 640 | 3984 | 1676 | 1500 |
| 12 | 764 | 4000 | 1676 | 1830 |
| 14 | 831 | 4200 | 1676 | 2000 |
| 16 | 885 | 4470 | 1800 | 2000 |
